ITEM DESCRIPTION:

CAST IRON. WITH 2*1/4 INCH OUTLET
COCK. 2.3M SS TRANSPARENT
SUCTION AND YELLOW OVERFLOW
HOSE.

TECHNICAL SPECIFICATIONS:

Plunger no*dia*stroke (mm): 3*30*30
Spraying Pressure (kg/cm2): 10-45
Suction(L/min) : 45-60
Engine Power (HP): 6.5 - 7
Net Weight (kg): 12

ITEM DESCRIPTION:

CAST IRON. WITH 2*1/4 1*3/4 INCH
OUTLET COCK. 2.3M SS TRANSPARENT
SUCTION AND YELLOW OVERFLOW
HOSE.

TECHNICAL SPECIFICATIONS:

Plunger no*dia*stroke (mm): 3*30*30
Spraying Pressure (kg/cm2): 10-45
Suction(L/min) : 45-60
Engine Power (HP): 6.5 - 7
Net Weight (kg): 12

CAST IRON. WITH 2*1/4 INCH OUTLET COCK. 2.3M SS TRANSPARENT SUCTION AND YELLOW OVERFLOW HOSE.

Plunger no*dia*stroke (mm): 3*22*16 Spraying Pressure (kg/cm2): 10-40 Suction(L/min) : 32-46 Engine Power (HP): 5.5-6.5 Net Weight (kg): 10

DESCRIPATION:

CAST IRON. WITH 2*1/4 INCH OUTLET COCK. 2.3M  SS TRANSPARENT SUCTION AND YELLOW OVERFLOW HOSE.

SPECIFICATIONS:

Plunger no*dia*stroke (mm): 3*22*16

Spraying Pressure (kg/cm2): 10-40

Suction(L/min) : 32-46

Engine Power (HP): 5.5-6.5

 Net Weight (kg): 10

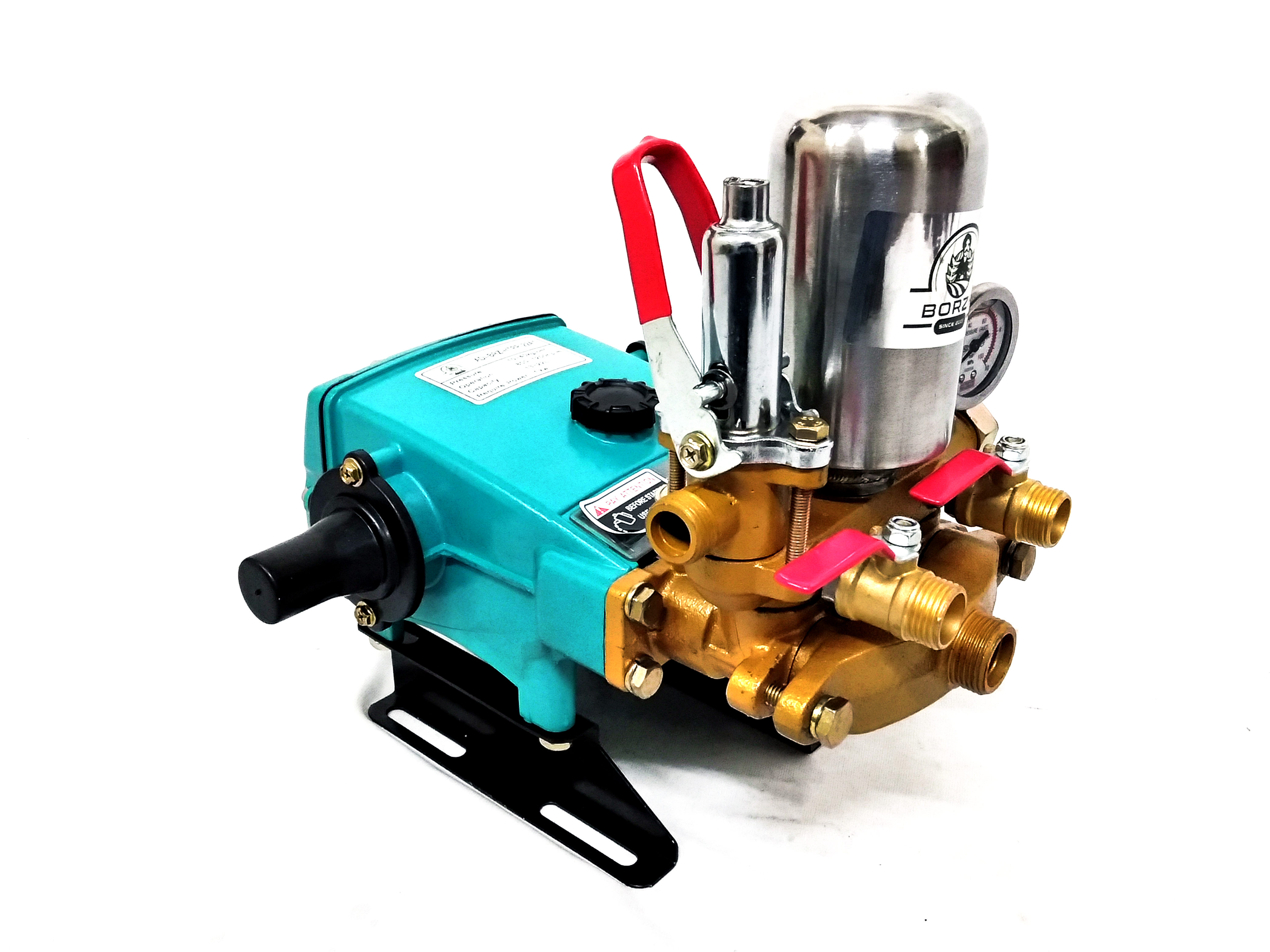

HTTP-101 AGRICULTURAL HTP SPRAYER ADI-HTPP-22A1

HTP PUMP CAST IRON. WITH 2*1/4 INCH OUTLET COCK. 2.3M SS TRANSPARENT SUCTION AND YELLOW OVERFLOW HOSE.

Plunger no*dia*stroke (mm): 3*22*16
Spraying Pressure (kg/cm2): 10-40
Suction(L/min) : 13-22
Engine Power (HP): 4.5-5.5
Net Weight (kg): 10
